Diamond Negative F1 Chipbreaker with ISO Hole, 1/64 inch Radius

Name: Diamond Negative F1 Chipbreaker with ISO Hole, 1/64 inch Radius
Brand: Ultra-Met
SKU: TUR-b11845
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-b11845

Enhance turning precision with our Diamond Negative F1 Chipbreaker, featuring an 80-degree angle and 1/64 inch radius. Achieve superior finishes effortlessly!

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Diamond Negative F1 Chipbreaker with ISO Style Hole, featuring a precise 1/64 inch radius, is designed for high-performance turning operations. Crafted to exacting dimensional specifications with a Thickness of 0.191-0.197 inches and an Inscribed Circle of 0.497-0.503 inches, this chipbreaker ensures exceptional finishing results. Its 80-degree angle enhances cutting efficiency, while the 0.200-0.206 inch hole allows for easy installation. Ideal for finishing applications, this chipbreaker delivers consistent quality and performance. Available grades tailored to your specific needs.

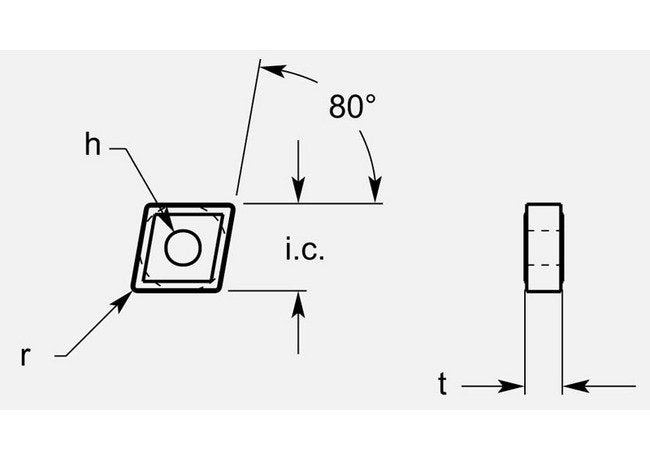

Product Specifications

Classifications Operation

Finishing

Dimensional Specification Angle A

80 Âº

Dimensional Specification Hole

0.200 / 0.206 in

Dimensional Specification Inscribed Circle Ic

0.497/0.503 in

Dimensional Specification Radius R

1/64 in

Dimensional Specification Thickness T

0.191 / 0.197 in

Grade Availability Grade Availability

Available on Request
