Diamond Negative F2 Chipbreaker with Hole, 0.259-0.265 in Thickness
Diamond Negative F2 Chipbreaker with Hole, 0.259-0.265 in Thickness
SKU:TUR-7166ef
Enhance turning precision with the Diamond Negative F2 Chipbreaker. Thickness: 0.259-0.265 in. Ideal for semi-finishing. Request grades.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative F2 Chipbreaker with Hole, 0.259-0.265 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F2 Chipbreaker with Hole, 0.259-0.265 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

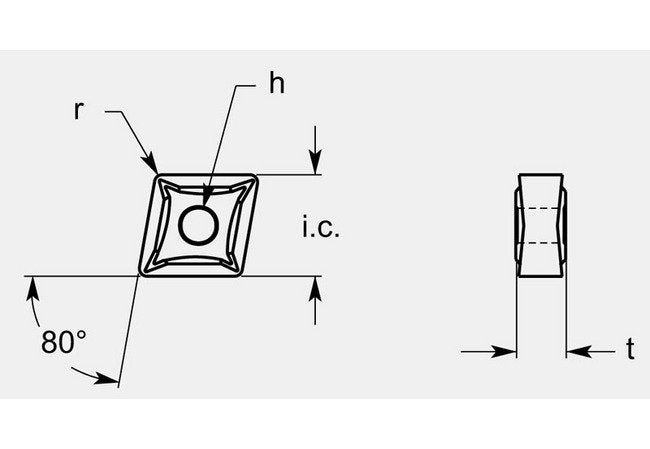

The Utility Diamond Negative F2 Chipbreaker with Hole is designed for precise turning applications, featuring a thickness range of 0.259 to 0.265 inches. With an inscribed circle of 0.747-0.753 inches and an 80-degree angle, this chipbreaker ensures semi-finishing operations with accuracy and efficiency. The integrated hole measuring 0.309-0.315 inches adds versatility to the tool. Available grades can be requested to match specific machining requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Operation
Semi Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.263 / 0.269 in
Grade Availability Grade Availability
Available on Request
