Diamond Negative F5 Chipbreaker - ISO Style Hole, 0.172/0.178 in
Diamond Negative F5 Chipbreaker - ISO Style Hole, 0.172/0.178 in
SKU:TUR-595901
Achieve precision in turning with Diamond Negative F5 Chipbreaker with ISO Style Hole. Optimal thickness, precise angles, and in-stock availability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker - ISO Style Hole, 0.172/0.178 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker - ISO Style Hole, 0.172/0.178 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

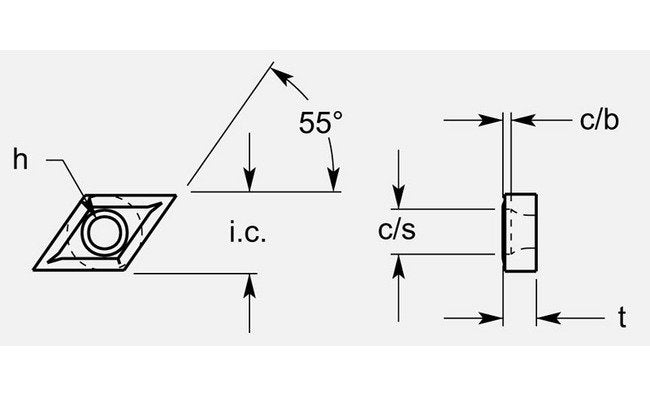

Meet precise turning needs with our Diamond Negative F5 Chipbreaker featuring ISO Style Hole. The chipbreaker's optimized dimensions of 0.172/0.178 in thickness, an inscribed circle of 0.389/0.395 in, and a 55° angle ensure efficient turning operations. Ideal for finishing tasks, this chipbreaker boasts hole dimensions of 0.170/0.176 in, C/S of 0.233/0.239 in, and a CB range of 0.040/0.046 in. With Grade Availability marking it as 'In Stock,' you can rely on its reliability and availability for your turning blanks requirements.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.040 / 0.046 in
Dimensional Specification Cs
0.233 / 0.239 in
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.172 / 0.178 in
Grade Availability Grade Availability
In Stock
