Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
SKU:TUR-8f08e7
Enhance turning precision with Diamond Negative F5 Chipbreaker - 0.109/0.115 in thickness, ideal for finishing operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative F5 Chipbreaker with ISO Style Hole offers precise dimensions for superior turning applications. With a thickness of 0.109/0.115 inches and an inscribed circle of 0.264/0.270 inches, this chipbreaker ensures high-quality finishing operations. The 80-degree angle and tight tolerances of 0.107/0.113 inch hole and 0.143/0.149 inch C/S deliver efficient reliability. Grade availability on request guarantees tailored performance to meet specific turning requirements.
Ready to Grow Without Cash Flow Constraints?

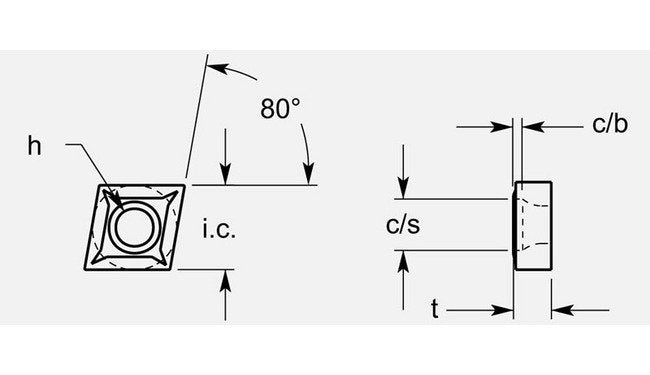

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.029 / 0.035 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
Available on Request
