Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
SKU:TUR-b47d0e
Optimize turning operations with the Diamond Negative F5 Chipbreaker. Thickness: 0.109/0.115 in. Grade Availability: In Stock.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Hole, 0.109/0.115 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

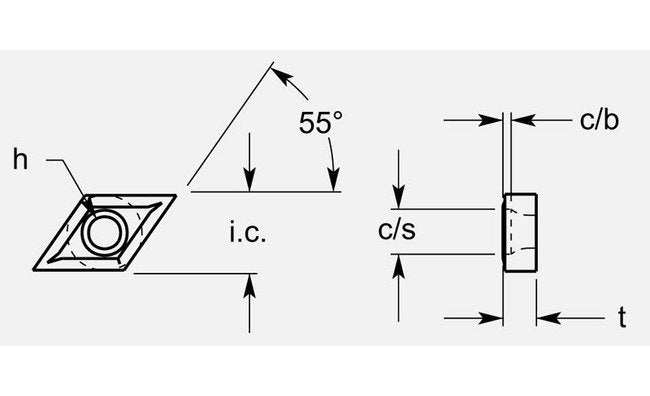

The Diamond Negative F5 Chipbreaker with ISO Style Hole is designed for precise finishing operations in turning applications. With a thickness of 0.109/0.115 inches and an inscribed circle of 0.264/0.270 inches, this chipbreaker ensures optimal performance. Its angle of 55 degrees enhances cutting efficiency while the hole size of 0.107/0.113 inches enables secure mounting. This chipbreaker, in Grade Availability 'In Stock', is ideal for achieving high-quality results in turning blanks.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.029 / 0.035 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
In Stock
