Diamond Negative F5 Chipbreaker with ISO Hole, 0.140/0.146 in
Diamond Negative F5 Chipbreaker with ISO Hole, 0.140/0.146 in
SKU:TUR-102a17
Enhance turning precision with the Diamond Negative F5 Chipbreaker. Ideal for finishing operations, customizable grades available.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Hole, 0.140/0.146 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Hole, 0.140/0.146 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

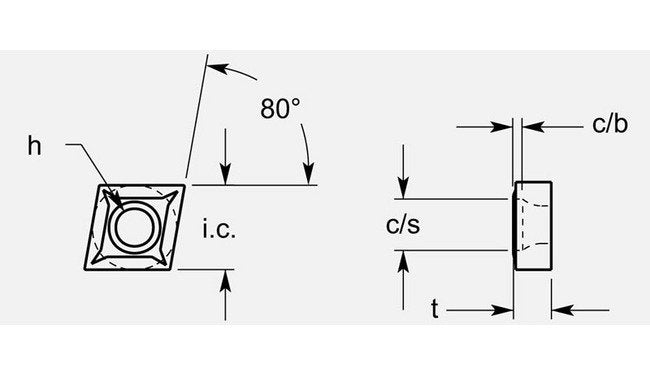

The Diamond Negative F5 Chipbreaker with ISO Style Hole offers superior precision and durability for turning applications. With a thickness range of 0.140 to 0.146 inches, an inscribed circle of 0.264 to 0.270 inches, and an 80-degree angle, this chipbreaker excels in finishing operations. Its precise hole dimensions, C/S, and CB measurements ensure consistent performance. Grade availability can be customized as per requirements, making it a versatile choice for various turning blanks applications.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.029 / 0.035 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.140 / 0.146 in
Grade Availability Grade Availability
Available on Request
