Diamond Negative F5 Chipbreaker with ISO Hole, Thickness 0.205/0.211 in
Diamond Negative F5 Chipbreaker with ISO Hole, Thickness 0.205/0.211 in
SKU:TUR-a33063
Enhance turning precision with Diamond Negative F5 Chipbreaker. For finishing operations, with precise specs. In stock.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Hole, Thickness 0.205/0.211 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Hole, Thickness 0.205/0.211 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your turning performance with the Diamond Negative F5 Chipbreaker featuring precise dimensional specifications including Thickness (t) of 0.205/0.211 in and Inscribed Circle (i.c.) of 0.514/0.520 in. Designed for finishing operations, this chipbreaker ensures optimal results. In stock and ready to elevate your machining capabilities.

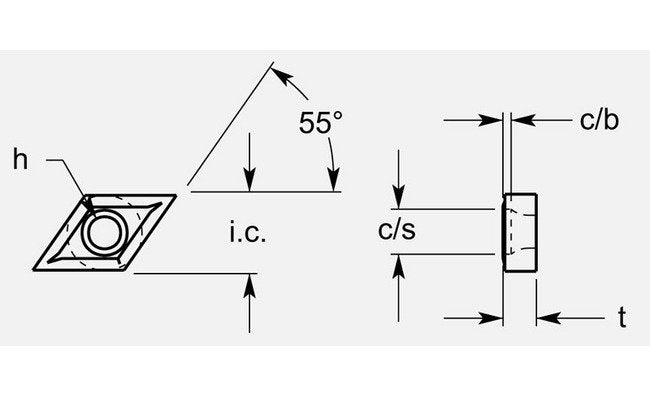

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.037 / 0.043 in
Dimensional Specification Cs
0.292 / 0.298 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.205 / 0.211 in
Grade Availability Grade Availability
In Stock
