Diamond Negative F5 Chipbreaker with ISO Style Hole
Diamond Negative F5 Chipbreaker with ISO Style Hole
SKU:TUR-219823
Precision Diamond Negative F5 Chipbreaker for turning applications. Thickness: 0.109 / 0.115 in. Ideal for finishing operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Style Hole
$49.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Style Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative F5 Chipbreaker with ISO Style Hole is designed for precise turning applications, featuring a thickness of 0.109 / 0.115 inches, Inscribed Circle of 0.264/0.270 inches, and an operation classification of Finishing. This chipbreaker ensures optimal performance and efficiency, meeting the highest industry standards for turning blanks.

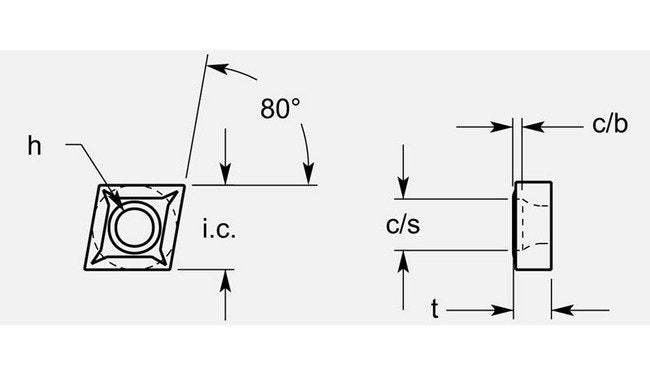

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.029 / 0.035 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
Available on Request
