Diamond Negative F5 Chipbreaker with ISO Style Hole 0.109 / 0.115 in
Diamond Negative F5 Chipbreaker with ISO Style Hole 0.109 / 0.115 in
SKU:TUR-595eb8
Precision Diamond Negative F5 Chipbreaker for finishing operations. Thickness: 0.109 / 0.115 in. Grade Availability: In Stock.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Style Hole 0.109 / 0.115 in
$49.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Style Hole 0.109 / 0.115 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

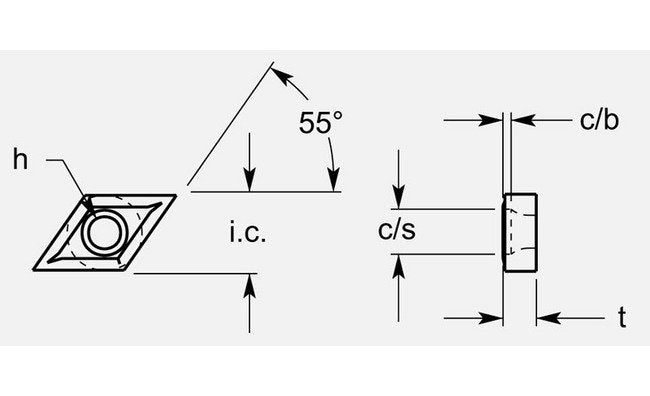

The Diamond Negative F5 Chipbreaker with ISO Style Hole is a precision-engineered turning blank designed for finishing operations. With a thickness range of 0.109 to 0.115 inches, an inscribed circle of 0.264 to 0.270 inches, and a versatile 55-degree angle, this chipbreaker offers exceptional performance. The hole diameter of 0.107 to 0.113 inches, combined with a cutting edge of 0.143 to 0.149 inches and chip breaker width of 0.029 to 0.035 inches, ensures optimal cutting efficiency. Grade availability includes in-stock options for immediate procurement.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.029 / 0.035 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
In Stock
