Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.172 / 0.178 in
Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.172 / 0.178 in
SKU:TUR-e27fd1
Precision Diamond Negative F5 Chipbreaker with ISO Style Hole for optimal turning results. Available in stock for immediate use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.172 / 0.178 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.172 / 0.178 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative F5 Chipbreaker with ISO Style Hole is meticulously crafted for precision turning applications. With a thickness of 0.172 / 0.178 inches, an inscribed circle of 0.389/0.395 inches, and an 80-degree angle, this chipbreaker excels in finishing operations. Its Grade Availability ensures it is readily in stock, ready to meet your turning needs efficiently.

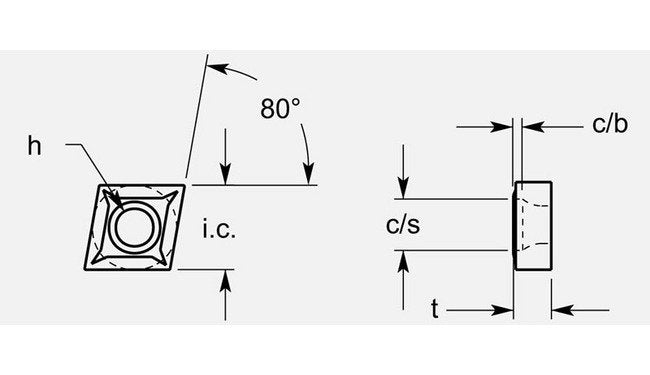

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.027 / 0.033 in
Dimensional Specification Cs
0.233 / 0.239 in
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.172 / 0.178 in
Grade Availability Grade Availability
In Stock
