Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.204/0.210 in
Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.204/0.210 in
SKU:TUR-1350a0
Precision Diamond Negative F5 Chipbreaker for turning operations. 0.204/0.210 in thickness, ideal for finishing tasks. In Stock.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.204/0.210 in
$59.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Style Hole, 0.204/0.210 in
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative F5 Chipbreaker with ISO Style Hole offers exceptional precision and durability for turning operations. With a thickness range of 0.204 to 0.210 inches, this chipbreaker features an 80-degree angle and an inscribed circle ranging from 0.514 to 0.520 inches. Designed for finishing operations, it ensures high-performance and consistent results. This product is graded as 'In Stock,' providing reliability and availability for your machining needs.

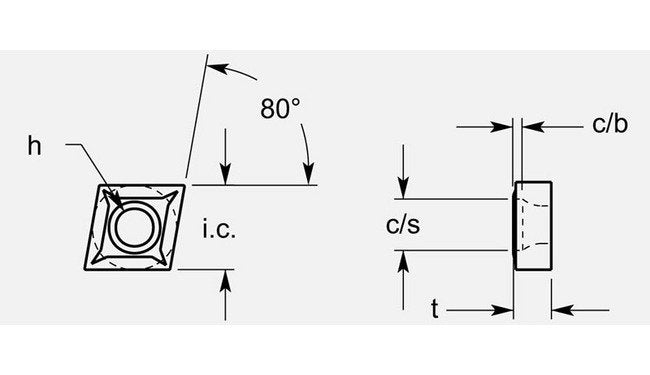

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.037 / 0.043 in
Dimensional Specification Cs
0.292 / 0.298 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.204 / 0.210 in
Grade Availability Grade Availability
In Stock
