Diamond Negative F5 Chipbreaker with ISO Style Hole
Diamond Negative F5 Chipbreaker with ISO Style Hole
SKU:TUR-b7299c
Precision Diamond Negative F5 Chipbreaker for finishing operations. Thickness: 0.109-0.115 in. In stock.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Style Hole
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Style Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative F5 Chipbreaker with ISO Style Hole is designed for precision turning operations, with a thickness ranging from 0.109 to 0.115 inches. Featuring an Inscribed Circle of 0.264 to 0.270 inches and an Angle of 80 degrees, this chipbreaker excels in finishing operations. The sturdy construction ensures durability and consistent performance. In stock and ready to meet the demands of industrial applications.

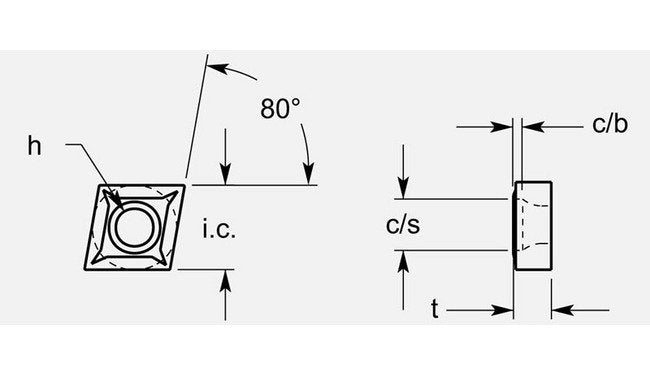

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.029 / 0.035 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
In Stock
