Diamond Negative F5 Chipbreaker with ISO Style Hole
Diamond Negative F5 Chipbreaker with ISO Style Hole
SKU:TUR-6f0232
Premium Diamond Negative F5 Chipbreaker for precision turning, thickness 0.172-0.178in, ideal for finishing operations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative F5 Chipbreaker with ISO Style Hole
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F5 Chipbreaker with ISO Style Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative F5 Chipbreaker with ISO Style Hole is designed for precision turning operations, featuring a thickness range of 0.172-0.178 inches. With an Inscribed Circle of 0.389-0.395 inches and an optimal 55-degree angle, this chipbreaker excels in finishing operations. Its hole diameter of 0.170-0.176 inches, C/S of 0.233-0.239 inches, and CB of 0.040-0.046 inches ensure versatility in various applications. Available in-grade selections and always in stock, this chipbreaker guarantees performance and reliability for turning blanks.
Ready to Grow Without Cash Flow Constraints?

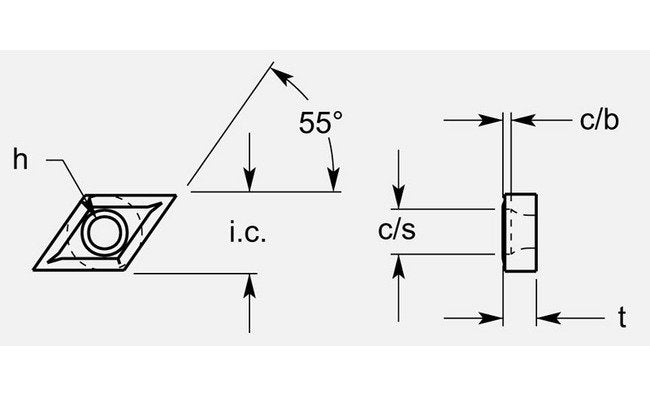

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.040 / 0.046 in
Dimensional Specification Cs
0.233 / 0.239 in
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.172 / 0.178 in
Grade Availability Grade Availability
In Stock
