Diamond Negative F5 Chipbreaker with ISO Style Hole - Precision Turning Tool

Name: Diamond Negative F5 Chipbreaker with ISO Style Hole - Precision Turning Tool
Brand: Ultra-Met
SKU: TUR-80eb3d
Price: 49.99 USD
Availability: OutOfStock

SKU:TUR-80eb3d

Achieve precision finishes with the Diamond Negative F5 Chipbreaker. Thickness: 0.170-0.176 in. Ideal for finishing operations.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Diamond Negative F5 Chipbreaker with ISO Style Hole is a cutting-edge turning tool designed for precision finishing operations. With a thickness range of 0.170 to 0.176 inches, an inscribed circle of 0.264 to 0.270 inches, and an 80-degree angle, this chipbreaker ensures high performance and accuracy. Its precise dimensions, including a hole size of 0.107 to 0.113 inches, make it ideal for creating smooth finishes. This tool is classified for finishing operations, meeting the most stringent requirements of precision manufacturing.

Product Specifications

Classifications Operation

Finishing

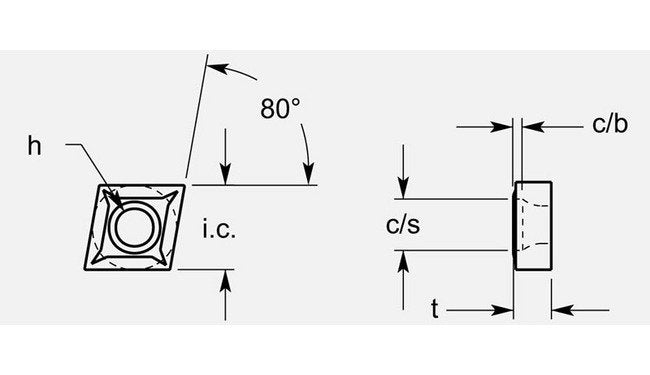

Dimensional Specification Angle A

80 Âº

Dimensional Specification Cb

0.029 / 0.035 in

Dimensional Specification Cs

0.143 / 0.149 in

Dimensional Specification Hole

0.107 / 0.113 in

Dimensional Specification Inscribed Circle Ic

0.264/0.270 in

Dimensional Specification Radius R

0 in

Dimensional Specification Thickness T

0.170 / 0.176 in

Grade Availability Grade Availability

Available on Request

Diamond Negative F5 Chipbreaker with ISO Style Hole - Precision Turning Tool
