Diamond Negative FA Chipbreaker with Hole, 0.196/0.202 in
Diamond Negative FA Chipbreaker with Hole, 0.196/0.202 in
SKU:TUR-34b981
High-grade chipbreaker for precision finishing. Thickness 0.196/0.202 in, with optimized hole for efficient chip evacuation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative FA Chipbreaker with Hole, 0.196/0.202 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative FA Chipbreaker with Hole, 0.196/0.202 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative FA Chipbreaker with Hole is a high-grade turning blank designed for precision finishing operations. With a thickness of 0.196 to 0.202 inches, an inscribed circle of 0.497 to 0.503 inches, and an 80-degree angle, this chipbreaker ensures efficient cutting performance. The integrated hole of 0.200 to 0.206 inches further enhances chip evacuation, optimizing the turning process. Available on request in various grades, this chipbreaker is a reliable choice for machining applications requiring exceptional accuracy and smooth surface finishes.

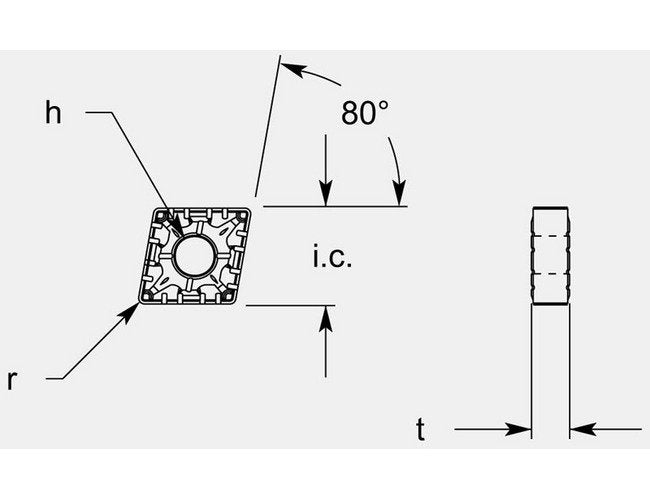

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.196 / 0.202 in
Grade Availability Grade Availability
Available on Request
