Diamond Negative General Purpose Chipbreaker with Hole, Radius 1/32 inch

Diamond Negative General Purpose Chipbreaker with Hole, Radius 1/32 inch

SKU:TUR-e3876a

Experience precision turning with our Diamond Negative GP4 Chipbreaker. General Purpose operation, various grades available on request.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Diamond Negative General Purpose Chipbreaker with Hole, Radius 1/32 inch

Diamond Negative General Purpose Chipbreaker with Hole, Radius 1/32 inch

$24.99

Quantity: 1

Claim Your Seller Account

Diamond Negative General Purpose Chipbreaker with Hole, Radius 1/32 inch

Diamond Negative General Purpose Chipbreaker with Hole, Radius 1/32 inch

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

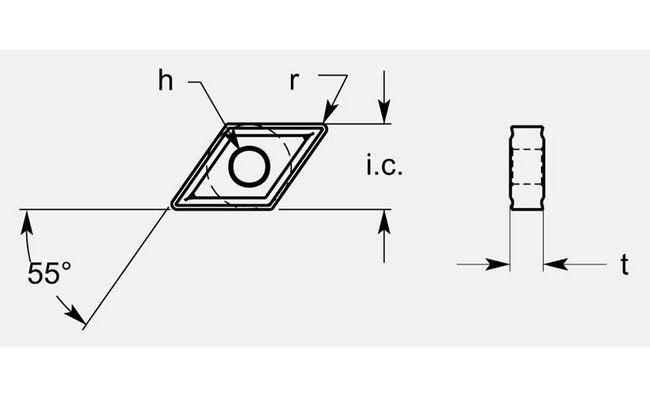

Enhance your turning projects with precision using the Diamond Negative General Purpose Chipbreaker. This chipbreaker features an Inscribed Circle of 0.497/0.503 inches and a 55-degree Angle for versatile applications. The 1/32-inch Radius ensures excellent chip control, while the hole diameter of 0.200/0.206 inches adds flexibility in mounting. Suitable for general purpose operations, this chipbreaker is available in various grades upon request, meeting diverse machining needs while maintaining high performance standards.

Product Specifications

Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.193 / 0.199 in
Grade Availability Grade Availability
Available on Request
