Diamond Negative GP1 Chipbreaker with Hole
Diamond Negative GP1 Chipbreaker with Hole
SKU:TUR-744f23
Enhance precision machining with the Diamond Negative GP1 Chipbreaker for efficient general-purpose turning. Available in various grades.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole
$49.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative GP1 Chipbreaker with Hole is a versatile turning blank designed for precise machining applications. With a thickness range of 0.263 to 0.269 inches, an inscribed circle of 0.747 to 0.753 inches, and an 80-degree angle, this chipbreaker ensures efficient performance. The included hole, with dimensions of 0.309 to 0.315 inches, enhances chip evacuation, making it ideal for general-purpose operations. Available in various grades upon request, this chipbreaker combines durability and performance to meet the demands of industrial machining requirements.

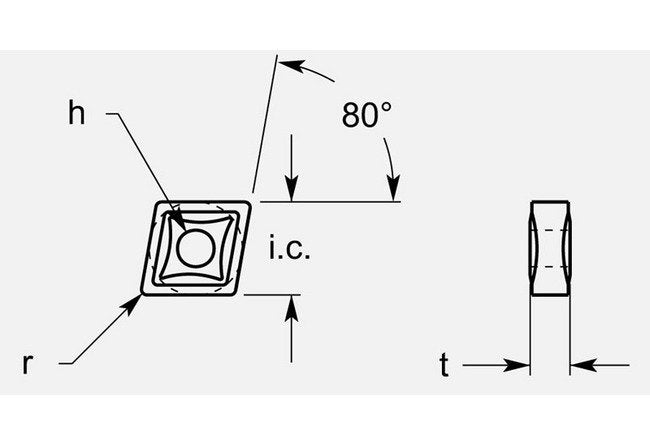

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.263 / 0.269 in
Grade Availability Grade Availability
Available on Request
