Diamond Negative GP1 Chipbreaker with Hole, 0.138 / 0.144 in
Diamond Negative GP1 Chipbreaker with Hole, 0.138 / 0.144 in
SKU:TUR-bcca9f
Enhance turning operations with the Diamond Negative GP1 Chipbreaker. Optimal thickness, precise angles, and custom grades available.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole, 0.138 / 0.144 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole, 0.138 / 0.144 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative GP1 Chipbreaker with Hole is expertly designed for precision turning operations, ensuring superior performance and efficiency. With a thickness of 0.138 / 0.144 inches and an inscribed circle of 0.497/0.503 inches, this chipbreaker excels in providing a clean cut and enhanced chip control. Operating at a versatile 80-degree angle, it is classified for General Purpose use, catering to a wide range of turning applications. Grade Availability can be customized based on specific requirements, making it an ideal choice for industrial and institutional projects.

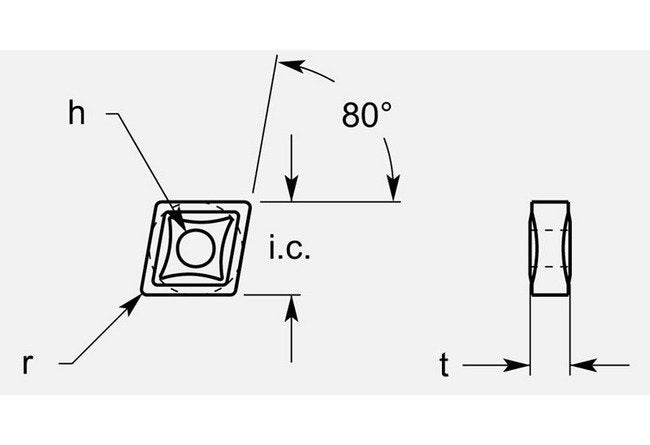

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.201 / 0.205 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.138 / 0.144 in
Grade Availability Grade Availability
Available on Request
