Diamond Negative GP1 Chipbreaker with Hole - 0.138/0.144 in
Diamond Negative GP1 Chipbreaker with Hole - 0.138/0.144 in
SKU:TUR-29580b
High-precision Diamond Negative GP1 Chipbreaker with Hole for versatile turning applications. Thickness: 0.138/0.144 in. Grade customizable on request.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole - 0.138/0.144 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole - 0.138/0.144 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative GP1 Chipbreaker with Hole is a precision-engineered turning blank designed for exceptional performance in a variety of applications. With a thickness of 0.138/0.144 inches and an inscribed circle of 0.373/0.377 inches, this chipbreaker offers superior cutting precision. The 35-degree angle and 1/32-inch radius provide efficiency and accuracy in general-purpose operations. Additionally, the chipbreaker features a hole diameter of 0.148/0.152 inches for enhanced functionality and adaptability. Grade availability can be customized to meet specific requirements upon request.
Ready to Grow Without Cash Flow Constraints?

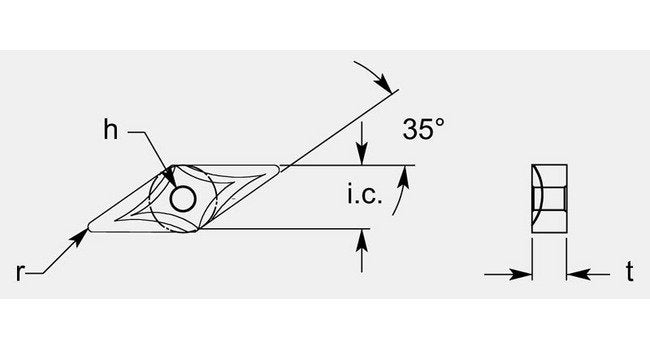

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.148 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.373/0.377 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.138 / 0.144 in
Grade Availability Grade Availability
Available on Request
