Diamond Negative GP1 Chipbreaker with Hole, 0.198-0.204 in
Diamond Negative GP1 Chipbreaker with Hole, 0.198-0.204 in
SKU:TUR-07e4de
Enhance turning precision with the Diamond Negative GP1 Chipbreaker. Thickness: 0.198-0.204 in. Ideal for General Purpose applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole, 0.198-0.204 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole, 0.198-0.204 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

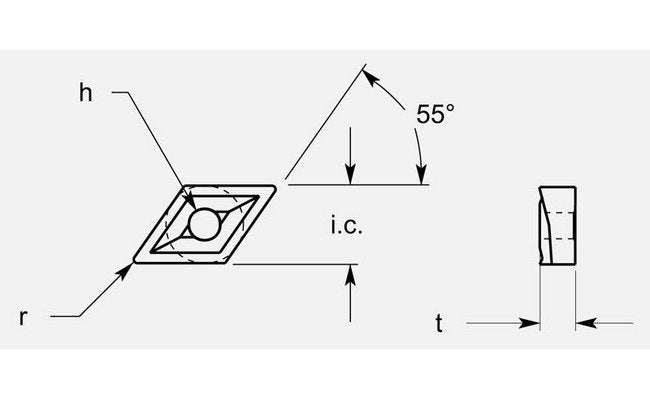

Enhance your turning operations with the Utility Diamond Negative GP1 Chipbreaker with Hole. Featuring a thickness range of 0.198 to 0.204 inches, an inscribed circle of 0.497 to 0.503 inches, a precise radius of 1/64 inch, and an angle of 55 degrees, this chipbreaker offers exceptional General Purpose performance. The accurately machined hole of 0.200 to 0.206 inches ensures superior precision. Available grades on request.
Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.198 / 0.204 in
Grade Availability Grade Availability
Available on Request
