Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
SKU:TUR-d08275
Explore the precision of Diamond Negative GP1 Chipbreaker for turning. Versatile, durable, and grade options available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

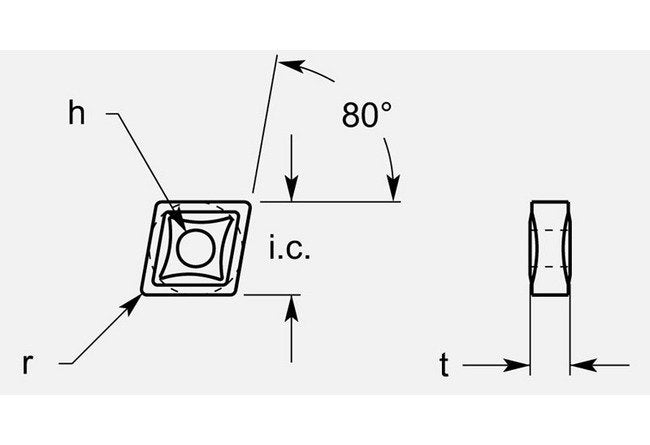

The Diamond Negative GP1 Chipbreaker with Hole offers precision and durability for turning operations. With a thickness range of 0.200 to 0.206 inches, an inscribed circle of 0.747 to 0.753 inches, and a radius of 1/32 inch, this chipbreaker is designed for general-purpose use. The 80-degree angle enhances cutting efficiency. The included hole is 0.309 to 0.315 inches in size, ensuring versatility and secure mounting. Available grades meet diverse requirements, with high availability upon request.
Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.200 / 0.206 in
Grade Availability Grade Availability
Available on Request
