Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
SKU:TUR-810c3a
Enhance machining precision with our Diamond Negative GP1 Chipbreaker in 0.200/0.206 in thickness. Ideal for general-purpose operations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole, 0.200/0.206 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative GP1 Chipbreaker with Hole is a versatile turning blank designed for precision in machining operations. With a thickness ranging from 0.200 to 0.206 inches, an inscribed circle diameter of 0.497 to 0.503 inches, and an 80-degree angle, this chipbreaker ensures efficient and accurate cutting. Its 1/32 inch radius promotes smooth finishes on workpieces. Suitable for general-purpose operations, this chipbreaker offers reliability and performance. Available grades ensure customization to specific machining needs upon request.
Ready to Grow Without Cash Flow Constraints?

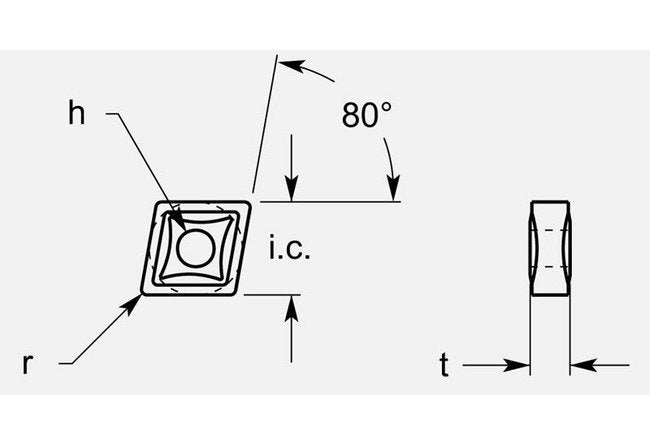

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.200 / 0.206 in
Grade Availability Grade Availability
Available on Request
