Diamond Negative GP1 Chipbreaker with Hole, 0.261-0.267in
Diamond Negative GP1 Chipbreaker with Hole, 0.261-0.267in
SKU:TUR-3cdd65
Premium Diamond Negative GP1 Chipbreaker for precise turning operations. General Purpose tool with customizable grade options.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole, 0.261-0.267in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole, 0.261-0.267in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative GP1 Chipbreaker with Hole is a versatile turning tool designed for precision and durability. With a thickness ranging from 0.261 to 0.267 inches, an inscribed circle of 0.497 to 0.503 inches, and a 1/32 inch radius, this chipbreaker ensures efficient cutting performance. It operates as a General Purpose tool, providing high-quality results across various applications. Grade availability is flexible to meet specific requirements upon request, catering to diverse industrial needs.

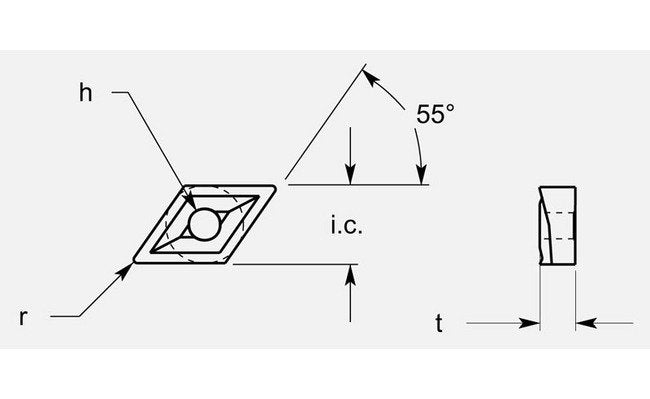

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.261 / 0.267 in
Grade Availability Grade Availability
Available on Request
