Diamond Negative GP1 Chipbreaker with Hole
Diamond Negative GP1 Chipbreaker with Hole
SKU:TUR-90595e
Premium Diamond Negative GP1 Chipbreaker for precise machining, 0.261 / 0.267 in thickness, ideal for industrial and government use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative GP1 Chipbreaker with Hole is a high-quality turning blank designed for precise machining operations. With a thickness of 0.261 / 0.267 inches, an inscribed circle of 0.622/0.628 inches, and a radius of 3/64 inches, this chipbreaker ensures optimal performance in general-purpose operations. The 55-degree angle and accuracy of the 0.247 / 0.253-inch hole further enhance its functionality, making it a reliable choice for industrial applications and government procurement needs. Grade availability can be customized upon request to meet specific project requirements.
Ready to Grow Without Cash Flow Constraints?

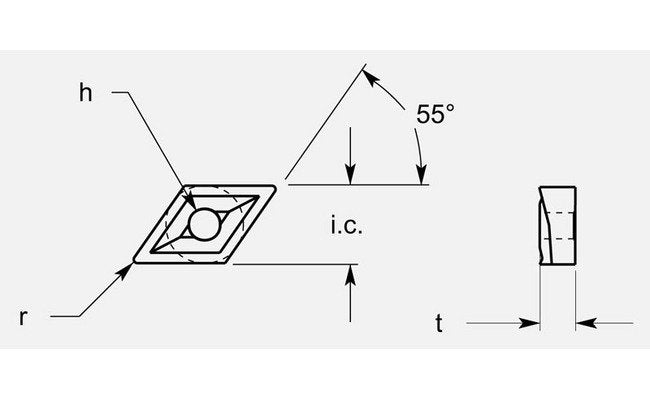

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.261 / 0.267 in
Grade Availability Grade Availability
Available on Request
