Diamond Negative GP1 Chipbreaker with Hole
Diamond Negative GP1 Chipbreaker with Hole
SKU:TUR-d9e284
Optimize turning with precision using the Diamond Negative GP1 Chipbreaker. General Purpose tool with a unique thickness range for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

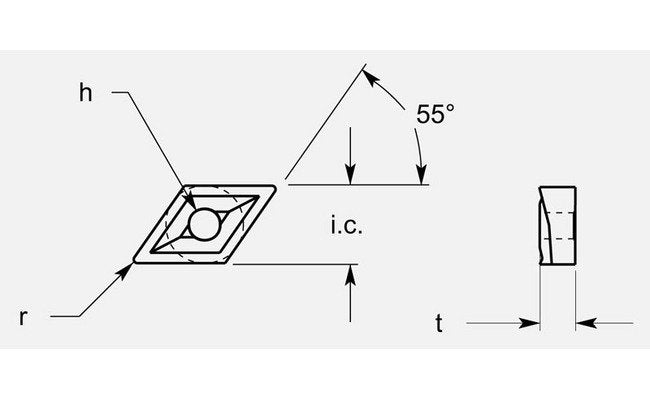

The Diamond Negative GP1 Chipbreaker with Hole is a precision-engineered turning tool designed for exceptional performance in industrial applications. With a unique thickness range of 0.198 to 0.204 inches, an inscribed circle diameter of 0.497 to 0.503 inches, and a perfect radius of 1/32 inch, this chipbreaker ensures precise cuts and superior finish quality. Operating at a 55-degree angle, it is classified for General Purpose operations, catering to a wide range of turning needs. The integrated hole with a diameter of 0.200 to 0.206 inches enhances coolant flow, prolonging tool life and maintaining efficiency. Grade availability can be customized based on specific requirements, ensuring industry-grade performance.
Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.198 / 0.204 in
Grade Availability Grade Availability
Available on Request
