Diamond Negative GP1 Chipbreaker with Hole Set, 0.198/0.204 in
Diamond Negative GP1 Chipbreaker with Hole Set, 0.198/0.204 in
SKU:TUR-5bc1b3
Upgrade your turning blanks with the Diamond Negative GP1 Chipbreaker set. Superior performance for general-purpose operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole Set, 0.198/0.204 in
$49.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole Set, 0.198/0.204 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your turning blanks with the Utility Diamond Negative GP1 Chipbreaker with Hole Set. Featuring a thickness range of 0.198 to 0.204 inches, an inscribed circle of 0.497 to 0.503 inches, a precise radius of 3/64 inches, and an optimal cutting angle of 55 degrees, this chipbreaker ensures efficient and accurate turning operations. Suitable for general-purpose applications, this set offers high-grade performance. Available upon request.

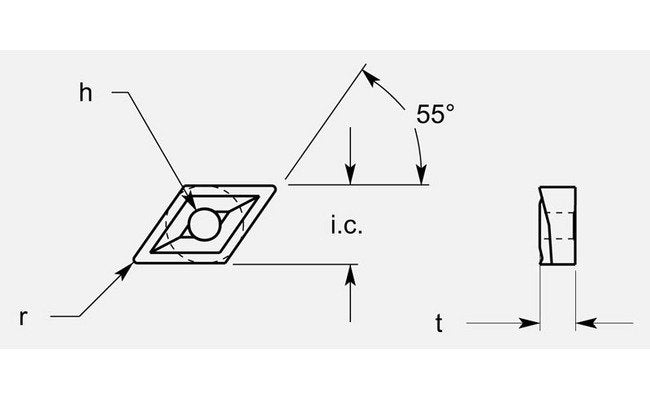

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.198 / 0.204 in
Grade Availability Grade Availability
Available on Request
