Diamond Negative GP1 Chipbreaker with Hole, Thickness 0.198/0.204 Inch
Diamond Negative GP1 Chipbreaker with Hole, Thickness 0.198/0.204 Inch
SKU:TUR-939fb2
Precision-engineered Utility Diamond Negative GP1 Chipbreaker for high-performance turning operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP1 Chipbreaker with Hole, Thickness 0.198/0.204 Inch
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP1 Chipbreaker with Hole, Thickness 0.198/0.204 Inch
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative GP1 Chipbreaker with Hole is a versatile turning blank designed for high precision machining applications. With a thickness of 0.198/0.204 inches, an inscribed circle of 0.622/0.628 inches, and a radius of 3/64 inches, this chipbreaker offers exceptional dimensional accuracy and cutting performance. The 55-degree angle ensures efficient chip control, making it suitable for general-purpose operations. Grade availability can be tailored to specific requirements upon request, guaranteeing that this chipbreaker meets the highest industry standards.
Ready to Grow Without Cash Flow Constraints?

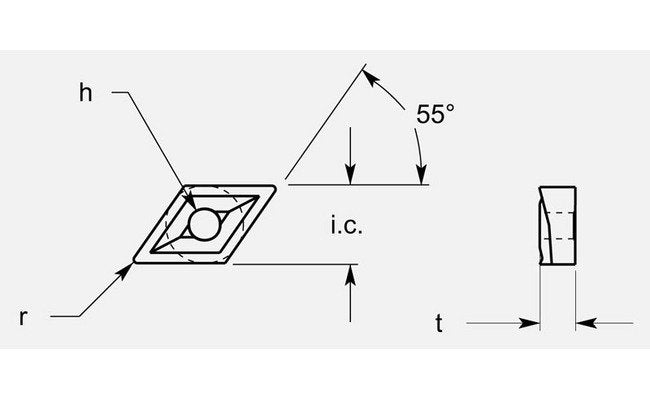

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.198 / 0.204 in
Grade Availability Grade Availability
Available on Request
