Diamond Negative GP3 Chipbreaker for Turning Blanks, 0.195 / 0.201 in

Name: Diamond Negative GP3 Chipbreaker for Turning Blanks, 0.195 / 0.201 in
Brand: Ultra-Met
SKU: TUR-ca41da
Price: 45.99 USD
Availability: OutOfStock

SKU:TUR-ca41da

Enhance turning blank operations with the Diamond Negative GP3 Chipbreaker. Achieve precise cuts and efficient chip evacuation. Customize grade availability for specific requirements.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

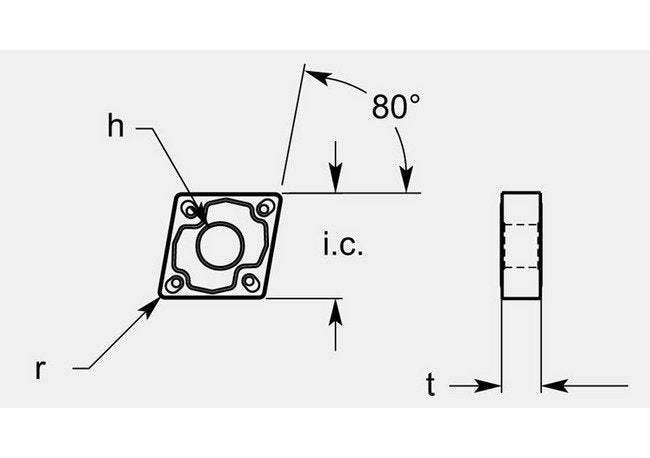

The Utility Diamond Negative GP3 Chipbreaker with Hole is a precision tool designed for turning blanks with exceptional efficiency. Featuring a Thickness of 0.195 / 0.201 inches, an Inscribed Circle of 0.497/0.503 inches, and an 80-degree Angle, this chipbreaker ensures precise cutting results. The included hole of 0.200 / 0.206 inches enhances chip evacuation, making it ideal for General Purpose operations. Grade availability can be customized upon request, catering to diverse machining needs in industrial settings.

Product Specifications

Classifications Operation

General Purpose

Dimensional Specification Angle A

80 Âº

Dimensional Specification Hole

0.200 / 0.206 in

Dimensional Specification Inscribed Circle Ic

0.497/0.503 in

Dimensional Specification Radius R

1/32 in

Dimensional Specification Thickness T

0.195 / 0.201 in

Grade Availability Grade Availability

Available on Request

Diamond Negative GP3 Chipbreaker for Turning Blanks, 0.195 / 0.201 in
