Diamond Negative GP4 Chipbreaker with Hole, 0.197/0.206 in
Diamond Negative GP4 Chipbreaker with Hole, 0.197/0.206 in
SKU:TUR-6bcb43
Versatile Diamond Negative Chipbreaker for precise turning operations. 0.197/0.206 in thickness, 80° angle, and 0.200/0.206 in hole.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative GP4 Chipbreaker with Hole, 0.197/0.206 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP4 Chipbreaker with Hole, 0.197/0.206 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative GP4 Chipbreaker with Hole is a versatile turning blank designed for precision machining applications. With a thickness of 0.197/0.206 inches, an inscribed circle of 0.497/0.503 inches, and an 80-degree cutting angle, this chipbreaker ensures optimal performance in general purpose operations. The 1/32-inch radius and precise hole dimensions of 0.200/0.206 inches enhance its utility and compatibility across a wide range of turning projects. Available in grade options upon request, this chipbreaker meets stringent industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?

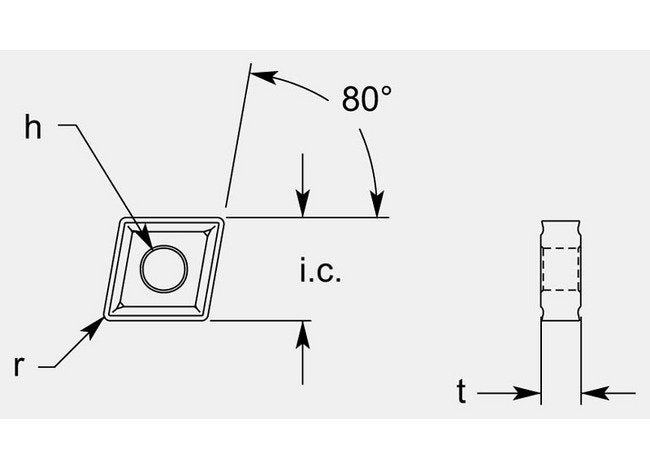

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.197 / 0.206 in
Grade Availability Grade Availability
Available on Request
