Diamond Negative GP8 Chipbreaker with Hole, Thickness 0.202 / 0.208 in
Diamond Negative GP8 Chipbreaker with Hole, Thickness 0.202 / 0.208 in
SKU:TUR-35ed5e
Enhance turning precision with our Diamond Negative chipbreaker featuring a 0.202-0.208 in thickness range. Ideal for general-purpose operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative GP8 Chipbreaker with Hole, Thickness 0.202 / 0.208 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative GP8 Chipbreaker with Hole, Thickness 0.202 / 0.208 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative GP8 Chipbreaker with Hole is a top-performing turning blank designed for precision machining. With a thickness range of 0.202 to 0.208 inches, inscribed circle of 0.497 to 0.503 inches, and a versatile 55-degree angle, this chipbreaker ensures exceptional cutting efficiency. Suitable for general-purpose operations, it offers high-grade availability upon request, meeting the stringent standards of industrial manufacturing.

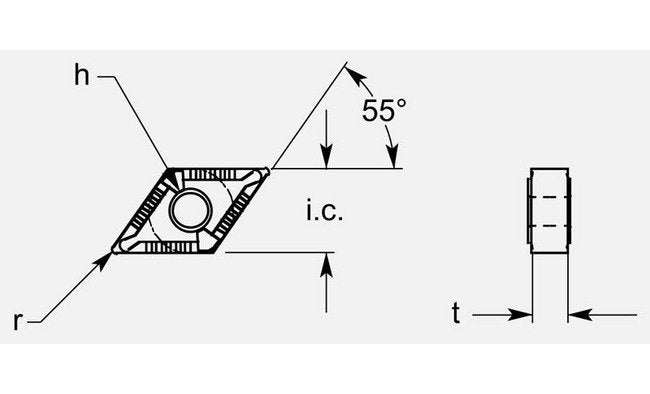

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.201 / 0.205 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.202 / 0.208 in
Grade Availability Grade Availability
Available on Request
