Diamond Negative Hole Countersink, 0.260-0.268 in
Diamond Negative Hole Countersink, 0.260-0.268 in
SKU:TUR-c9379c
High-quality Diamond Negative with Hole & Countersink, precise dimensions for efficient machining.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Hole Countersink, 0.260-0.268 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Hole Countersink, 0.260-0.268 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

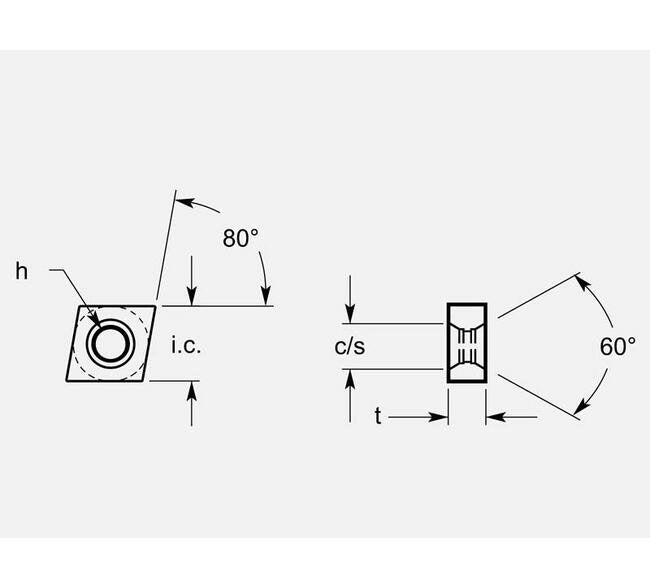

The Diamond Negative with Hole & Countersink turning blank offers precision with a thickness range of 0.260-0.268 inches, an Inscribed Circle of 0.451-0.457 inches, and Angle of 80 degrees. With hole and countersink diameters of 0.163-0.173 inches and 0.269-0.279 inches respectively, this blank ensures accurate and efficient machining. Available grades meet institutional procurement standards and provide exceptional quality.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cs
0.269 / 0.279 in
Dimensional Specification Hole
0.163 / 0.173 in
Dimensional Specification Inscribed Circle Ic
0.451/0.457 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Grade Availability Grade Availability
Available on Request
