Diamond Negative R1 Chipbreaker with Hole
Diamond Negative R1 Chipbreaker with Hole
SKU:TUR-341345
Enhance cutting precision with our Diamond Negative R1 Chipbreaker for roughing operations. Ideal for a range of machining applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative R1 Chipbreaker with Hole
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R1 Chipbreaker with Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative R1 Chipbreaker with Hole is a versatile turning blank designed for roughing operations. With a precision thickness range of 0.256 to 0.262 inches, an inscribed circle of 0.622 to 0.628 inches, and a radius of 1/8 inch, this chipbreaker ensures high-performance machining. The 80-degree angle and precise hole dimensions of 0.247 to 0.253 inches enhance cutting accuracy and efficiency. Grade availability can be tailored to meet specific requirements upon request.

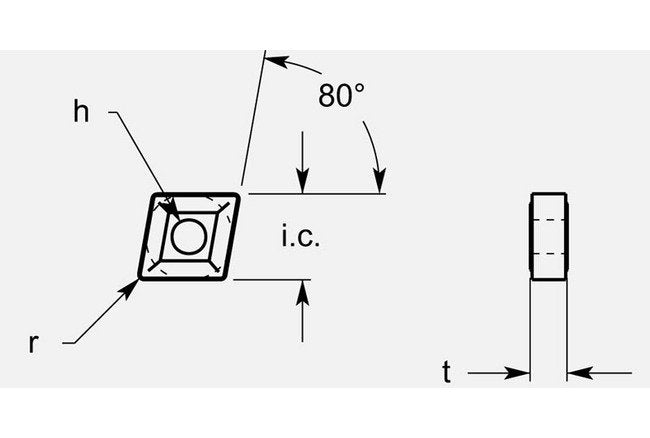

Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
1/8 in
Dimensional Specification Thickness T
0.256 / 0.262 in
Grade Availability Grade Availability
Available on Request
