Diamond Negative R1 Chipbreaker with Hole (0.129 / 0.135 in)
Diamond Negative R1 Chipbreaker with Hole (0.129 / 0.135 in)
SKU:TUR-f63533
High-performance Diamond Negative R1 Chipbreaker for precise roughing operations. Thickness: 0.129-0.135 in, Angle: 80°, Hole: 0.200-0.206 in.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative R1 Chipbreaker with Hole (0.129 / 0.135 in)
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R1 Chipbreaker with Hole (0.129 / 0.135 in)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

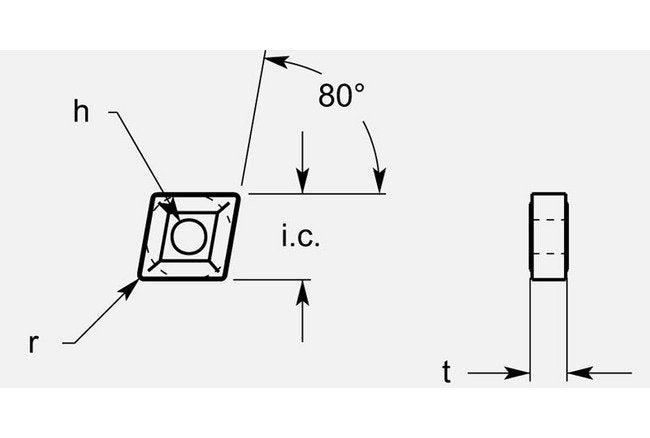

The Diamond Negative R1 Chipbreaker with Hole is a premium turning blank designed for precision roughing operations. With a thickness range of 0.129 to 0.135 inches, an inscribed circle of 0.497 to 0.503 inches, and a radius of 1/32 inches, this chipbreaker ensures exceptional performance and durability. The chipbreaker's 80-degree angle and hole diameter of 0.200 to 0.206 inches offer optimal cutting efficiency. Grade availability is customizable upon request, catering to diverse machining requirements.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.129 / 0.135 in
Grade Availability Grade Availability
Available on Request
