Diamond Negative R1 Chipbreaker with Hole - 0.196/0.202 in Thickness
Diamond Negative R1 Chipbreaker with Hole - 0.196/0.202 in Thickness
SKU:TUR-e01e99
Precision Diamond Negative R1 Chipbreaker with Hole for superior Roughing operation. Customizable grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative R1 Chipbreaker with Hole - 0.196/0.202 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R1 Chipbreaker with Hole - 0.196/0.202 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

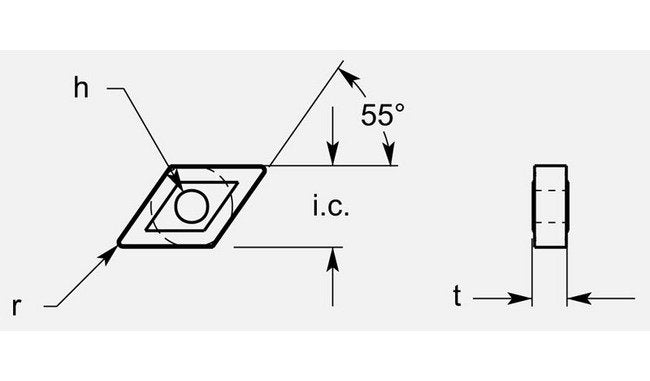

The Diamond Negative R1 Chipbreaker with Hole boasts precision engineering with a thickness range of 0.196 to 0.202 inches, an Inscribed Circle of 0.635 to 0.650 inches, and a 1/32-inch Radius. Designed for Roughing operations at a 55-degree angle, this chipbreaker ensures superior performance and longevity. Grade availability can be customized upon request, catering to specific machining needs.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.635/0.650 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.196 / 0.202 in
Grade Availability Grade Availability
Available on Request
