Diamond Negative R1 Chipbreaker with Hole - 0.196 / 0.202 in Thickness
Diamond Negative R1 Chipbreaker with Hole - 0.196 / 0.202 in Thickness
SKU:TUR-311b48
Precision Diamond Negative R1 Chipbreaker - Ideal for roughing operations. Thickness: 0.196 / 0.202 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative R1 Chipbreaker with Hole - 0.196 / 0.202 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R1 Chipbreaker with Hole - 0.196 / 0.202 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

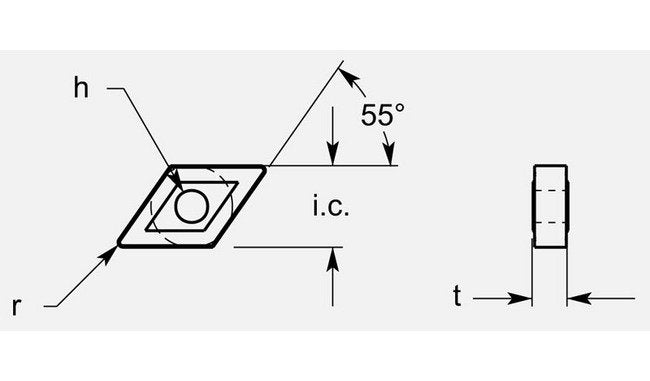

The Diamond Negative R1 Chipbreaker with Hole is a precision-engineered turning tool designed for roughing operations. With a thickness of 0.196 / 0.202 inches, an inscribed circle of 0.622/0.628 inches, an angle of 55 degrees, and a hole diameter of 0.247 / 0.253 inches, this chipbreaker ensures optimal performance and durability. Its grade availability can be customized upon request, meeting the most stringent industry standards for turning blanks. Perfect for institutional and government buyers requiring high-precision tools for their operations.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.196 / 0.202 in
Grade Availability Grade Availability
Available on Request
