Diamond Negative R1 Chipbreaker with Hole, 0.254/0.260 in Thickness
Diamond Negative R1 Chipbreaker with Hole, 0.254/0.260 in Thickness
SKU:TUR-9a71d7
Enhance precision turning with our Utility Diamond Negative R1 Chipbreaker. Ideal for roughing operations with exceptional chip evacuation capabilities.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative R1 Chipbreaker with Hole, 0.254/0.260 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R1 Chipbreaker with Hole, 0.254/0.260 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

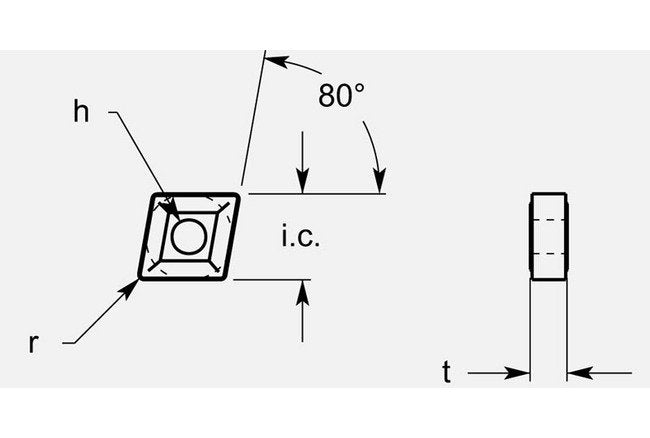

The Utility Diamond Negative R1 Chipbreaker with Hole is a superior turning blank designed for precision machining operations. With a thickness ranging from 0.254 to 0.260 inches and an inscribed circle of 0.497 to 0.503 inches, this chipbreaker is ideal for roughing operations at an 80-degree angle. The integrated hole, measuring 0.200 to 0.206 inches, enhances chip evacuation for efficient performance. Grade availability can be tailored to your specific needs upon request, ensuring optimal results for your turning projects.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.254 / 0.260 in
Grade Availability Grade Availability
Available on Request
