Diamond Negative R1 Chipbreaker with Hole, 0.256-0.262 in Thickness
Diamond Negative R1 Chipbreaker with Hole, 0.256-0.262 in Thickness
SKU:TUR-3e4a99
Achieve precision turning with our Diamond Negative R1 Chipbreaker, optimized for roughing operations. Thickness: 0.256-0.262 in.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Diamond Negative R1 Chipbreaker with Hole, 0.256-0.262 in Thickness
$34.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R1 Chipbreaker with Hole, 0.256-0.262 in Thickness
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

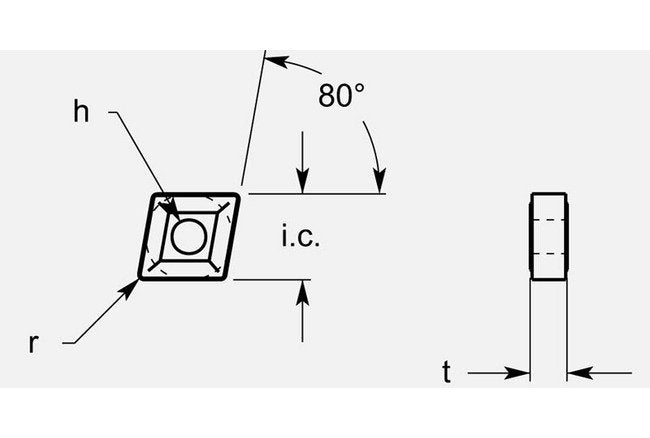

The Utility Diamond Negative R1 Chipbreaker with Hole is designed for precision turning operations, featuring a thickness range of 0.256 to 0.262 inches. With an inscribed circle of 0.747 to 0.753 inches, an 80-degree angle, and a small radius of 3/64 inches, this chipbreaker excels in roughing applications. The integrated hole with a diameter of 0.309 to 0.315 inches enhances chip evacuation, ensuring efficient performance. Grade availability can be customized upon request, meeting diverse operational requirements.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.256 / 0.262 in
Grade Availability Grade Availability
Available on Request
