Diamond Negative R1 Chipbreaker with Hole
Diamond Negative R1 Chipbreaker with Hole
SKU:TUR-a103e5
Enhance turning precision with the Diamond Negative R1 Chipbreaker designed for roughing operations. Available in multiple grades. Get yours today!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative R1 Chipbreaker with Hole
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R1 Chipbreaker with Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

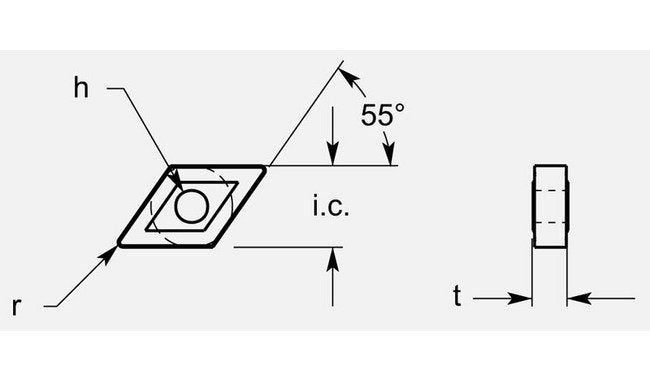

The Diamond Negative R1 Chipbreaker with Hole is a premium turning blank tool designed for precision machining tasks. With a thickness range of 0.261 to 0.267 inches, an inscribed circle of 0.622 to 0.628 inches, and a 1/32 inch radius, this chipbreaker ensures optimal performance in roughing operations. The chipbreaker also features a 55-degree angle and a hole diameter ranging from 0.247 to 0.253 inches. Crafted for durability and efficiency, this tool is available in various grades upon request, making it suitable for diverse turning applications.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.261 / 0.267 in
Grade Availability Grade Availability
Available on Request
