Diamond Negative R3 Chipbreaker with Hole, 0.254/0.260 in
Diamond Negative R3 Chipbreaker with Hole, 0.254/0.260 in
SKU:TUR-190b24
Precision Utility Diamond R3 Chipbreaker for Roughing, 0.254/0.260 in
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative R3 Chipbreaker with Hole, 0.254/0.260 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R3 Chipbreaker with Hole, 0.254/0.260 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

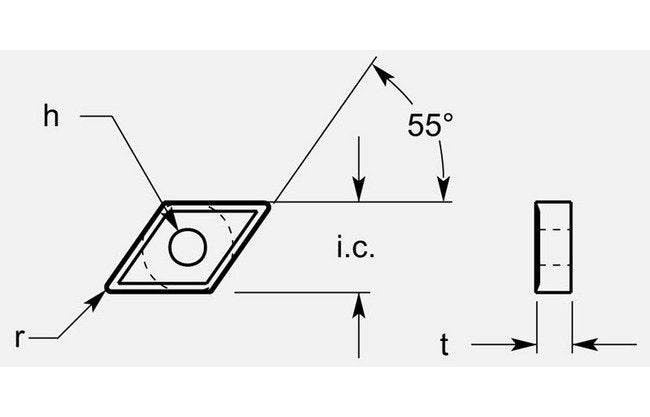

The Utility Diamond Negative R3 Chipbreaker with Hole is designed for precision turning applications, featuring a thickness of 0.254/0.260 inches, an Inscribed Circle of 0.622/0.628 inches, and a Radius of 3/64 inches. With a 55-degree Angle and a hole size of 0.248/0.253 inches, this chipbreaker excels in Roughing operations with superior performance and durability. Grade options are available on request to meet specific machining needs.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.248 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.254 / 0.260 in
Grade Availability Grade Availability
Available on Request
