Diamond Negative R4 Chipbreaker with Hole - 0.260 / 0.266 in
Diamond Negative R4 Chipbreaker with Hole - 0.260 / 0.266 in
SKU:TUR-a41a9f
Precision chipbreaker with hole, 0.260/0.266 in thickness, suitable for roughing tasks
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative R4 Chipbreaker with Hole - 0.260 / 0.266 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R4 Chipbreaker with Hole - 0.260 / 0.266 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

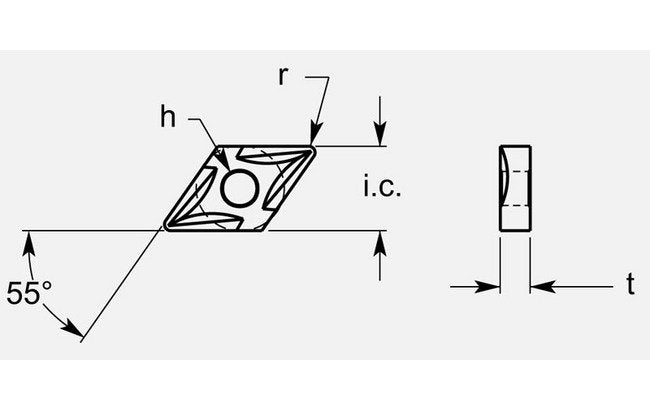

The Utility Diamond Negative R4 Chipbreaker with Hole is designed for precision turning applications, featuring a thickness of 0.260 / 0.266 inches, an Inscribed Circle of 0.622/0.628 inches, and a Radius of 3/64 inches. With a 55-degree Angle and hole diameter of 0.247 / 0.253 inches, this tool excels in roughing operations. Grade availability can be customized upon request, ensuring suitability for diverse machining needs.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.260 / 0.266 in
Grade Availability Grade Availability
Available on Request
