Diamond Negative R5 Chipbreaker with Hole - 0.194/0.200 in
Diamond Negative R5 Chipbreaker with Hole - 0.194/0.200 in
SKU:TUR-ab61e3
Experience precision turning with the Diamond Negative R5 Chipbreaker - 0.194/0.200 in. Optimal for roughing operations, meet industry standards effortlessly.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Diamond Negative R5 Chipbreaker with Hole - 0.194/0.200 in
$24.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R5 Chipbreaker with Hole - 0.194/0.200 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative R5 Chipbreaker with Hole is designed to deliver precision and efficiency in turning applications. With a thickness of 0.194/0.200 inches and an inscribed circle of 0.497/0.503 inches, this chipbreaker ensures optimal performance during roughing operations. The 1/32-inch radius and 80-degree angle enhance cutting accuracy while the hole of 0.200/0.206 inches offers versatility. Available on request, this chipbreaker meets industry standards for quality and durability.
Product Specifications
Classifications Operation
Roughing

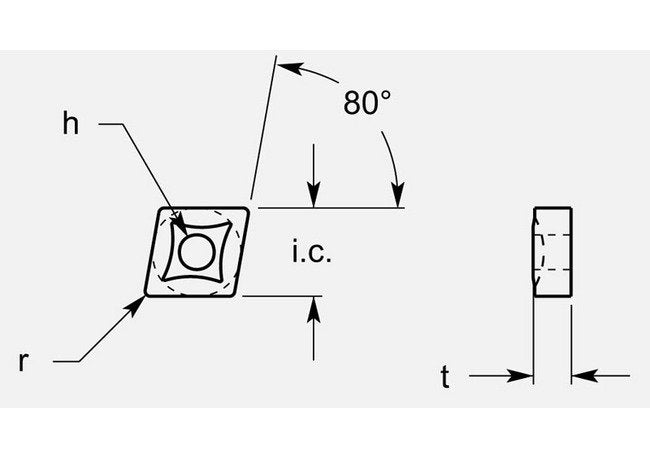

Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.194 / 0.200 in
Grade Availability Grade Availability
Available on Request
