Diamond Negative R5 Chipbreaker with Hole, 1/32 in Radius
Diamond Negative R5 Chipbreaker with Hole, 1/32 in Radius
SKU:TUR-74295e
Experience precision turning with our Diamond Negative R5 Chipbreaker, ideal for roughing operations. Customize grade for specific requirements.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative R5 Chipbreaker with Hole, 1/32 in Radius
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R5 Chipbreaker with Hole, 1/32 in Radius
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

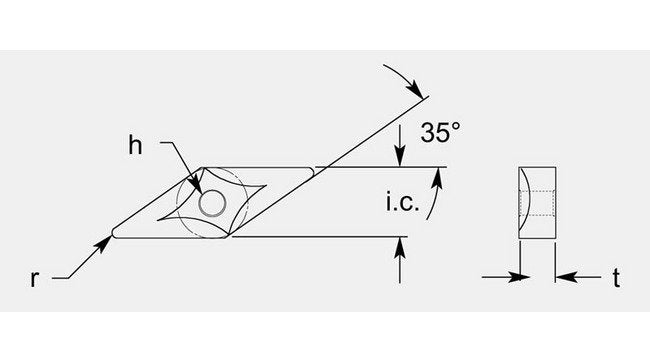

The Utility Diamond Negative R5 Chipbreaker with Hole is a high-performance turning blank designed for roughing operations with precision and durability. With a thickness ranging from 0.194 to 0.200 inches and an inscribed circle diameter of 0.373 to 0.377 inches, this chipbreaker features a 35-degree angle for efficient cutting. The 1/32-inch radius and a precisely crafted hole of 0.148 to 0.152 inches ensure optimal performance. Grade availability can be requested for tailored needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.148 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.373/0.377 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.194 / 0.200 in
Grade Availability Grade Availability
Available on Request
