Diamond Negative R5 Chipbreaker with Hole, Radius 1/32 inch
Diamond Negative R5 Chipbreaker with Hole, Radius 1/32 inch
SKU:TUR-24adce
Experience precision and efficiency with our Diamond Negative R5 Chipbreaker, ideal for roughing operations. Radius: 1/32 inch.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Diamond Negative R5 Chipbreaker with Hole, Radius 1/32 inch
$34.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R5 Chipbreaker with Hole, Radius 1/32 inch
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

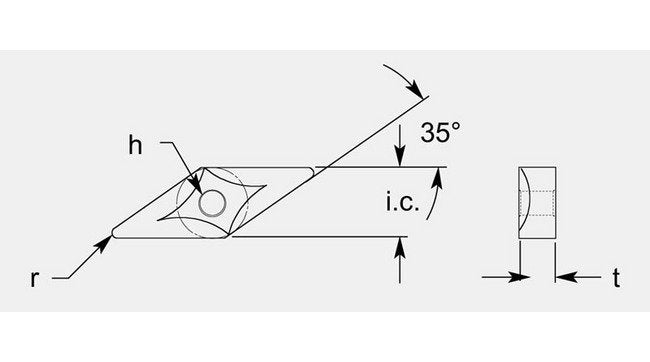

The Utility Diamond Negative R5 Chipbreaker with Hole is designed for precise roughing operations with a Radius of 1/32 inch, ensuring optimal performance in turning blanks. With a Thickness ranging from 0.132 to 0.138 inches and an Inscribed Circle of 0.373 to 0.377 inches, this chipbreaker offers superior cutting capabilities. Its 35-degree Angle enhances efficiency, while the included hole with dimensions of 0.148 to 0.152 inches adds versatility to machining tasks. Available on request, this chipbreaker guarantees high-grade performance meeting the most stringent industry standards.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.148 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.373/0.377 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.132 / 0.138 in
Grade Availability Grade Availability
Available on Request
