Diamond Negative R5 Chipbreaker with Hole, Thickness 0.261-0.267 in
Diamond Negative R5 Chipbreaker with Hole, Thickness 0.261-0.267 in
SKU:TUR-fa711a
Precision-designed chipbreaker with 0.261-0.267 in thickness, ideal for roughing operations.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Diamond Negative R5 Chipbreaker with Hole, Thickness 0.261-0.267 in
$34.99
Quantity: 1
Claim Your Seller Account
Diamond Negative R5 Chipbreaker with Hole, Thickness 0.261-0.267 in
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

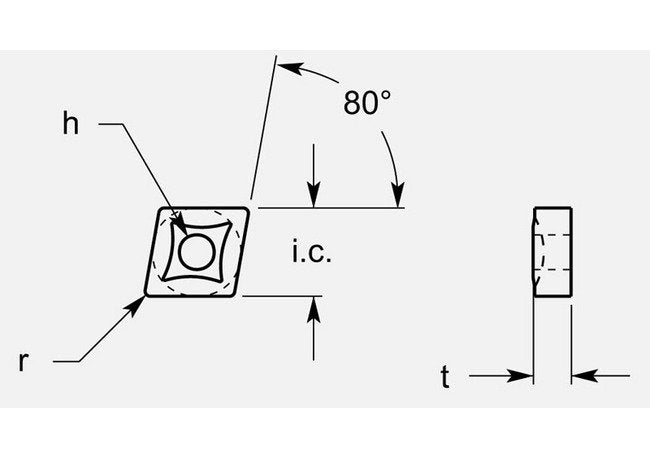

The Utility Diamond Negative R5 Chipbreaker with Hole is a precision-engineered turning tool designed for roughing operations. With a thickness ranging from 0.261 to 0.267 inches and an inscribed circle of 0.747 to 0.753 inches, this chipbreaker offers high-performance cutting capabilities. The chipbreaker features an 80-degree angle, a radius of 3/64 inches, and a precision-drilled hole measuring 0.309 to 0.315 inches. Suitable for a wide range of turning blanks, this tool ensures efficient material removal and superior surface finishes, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.261 / 0.267 in
Grade Availability Grade Availability
Available on Request
