Diamond Negative RA Chipbreaker with Hole, Thickness 0.196/0.202 in
Diamond Negative RA Chipbreaker with Hole, Thickness 0.196/0.202 in
SKU:TUR-b4612d
High-performance Diamond Negative RA Chipbreaker for precision roughing operations. Thickness: 0.196/0.202 in. Hole for efficient chip evacuation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative RA Chipbreaker with Hole, Thickness 0.196/0.202 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative RA Chipbreaker with Hole, Thickness 0.196/0.202 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

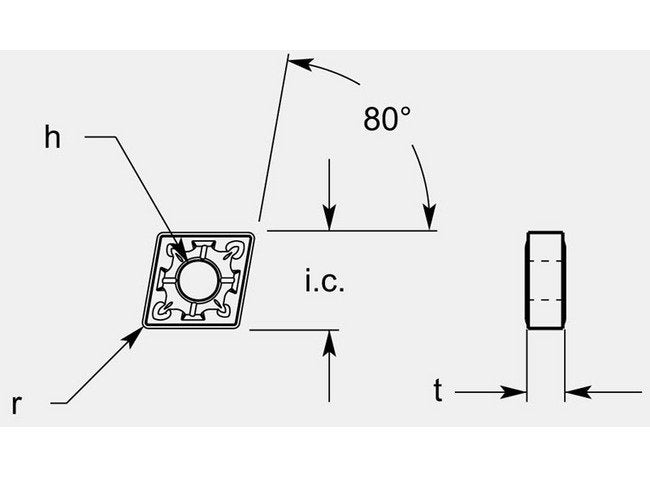

The Diamond Negative RA Chipbreaker with Hole is a precision-engineered turning blank designed for roughing operations. With a thickness range of 0.196 to 0.202 inches, an inscribed circle of 0.497 to 0.503 inches, and an 80-degree angle, this chipbreaker ensures efficient material removal. The incorporated hole feature with dimensions of 0.200 to 0.206 inches enhances chip evacuation, promoting uninterrupted machining. Grade availability can be customized upon request, catering to diverse machining requirements.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.196 / 0.202 in
Grade Availability Grade Availability
Available on Request
