Diamond Negative Turning Blank with 3/32" Radius Hole

Name: Diamond Negative Turning Blank with 3/32" Radius Hole
Brand: Ultra-Met
SKU: TUR-2432b1
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-2432b1

Enhance turning projects with precision using this Diamond Negative Blank with 3/32" Radius Hole. Accurate dimensions and versatile hole.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your turning projects with precision and durability using the Diamond Negative Turning Blank with a 3/32" radius hole. Made to exact dimensional specifications with a thickness range of 0.260 to 0.268 inches, an inscribed circle of 0.747 to 0.753 inches, and an 80-degree angle, this blank guarantees accuracy and consistency. The included hole measuring 0.309 to 0.315 inches adds versatility to your creations. Grade availability tailored to your needs ensures high-quality results every time.

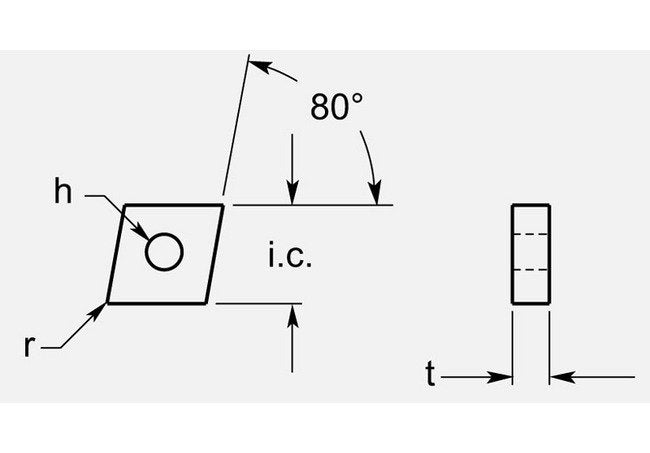

Product Specifications

Dimensional Specification Angle A

80 Âº

Dimensional Specification Hole

0.309 / 0.315 in

Dimensional Specification Inscribed Circle Ic

0.747/0.753 in

Dimensional Specification Radius R

3/32 in

Dimensional Specification Thickness T

0.260 / 0.268 in

Grade Availability Grade Availability

Available on Request

Diamond Negative Turning Blank with 3/32" Radius Hole
