Diamond Negative Turning Blank with Hole, 0.202 / 0.208 in
Diamond Negative Turning Blank with Hole, 0.202 / 0.208 in
SKU:TUR-da7991
High-precision Diamond Negative Turning Blank for industrial turning applications. Thickness: 0.202 / 0.208 in.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, 0.202 / 0.208 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, 0.202 / 0.208 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative Turning Blank with Hole is a precision-engineered tool for turning applications. With a thickness of 0.202 to 0.208 inches, an Inscribed Circle of 0.520 to 0.525 inches, and a 35-degree angle, this blank offers exceptional accuracy and durability. Grade availability is customizable to meet specific requirements, ensuring optimal performance. Perfect for industrial and institutional use, this turning blank guarantees high precision and reliability.

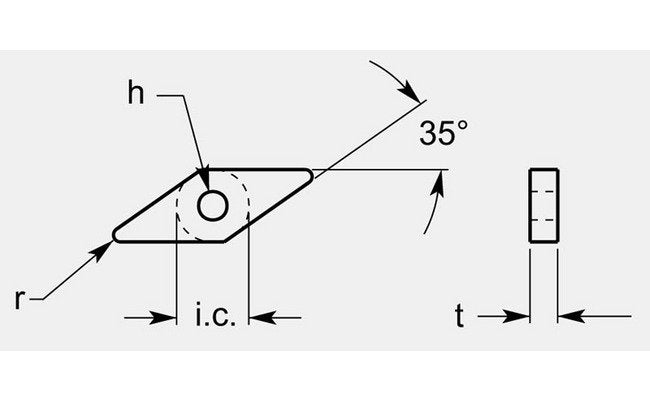

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.520/0.525 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.202 / 0.208 in
Grade Availability Grade Availability
Available on Request
