Diamond Negative Turning Blank with Hole, 0.260/0.268 in
Diamond Negative Turning Blank with Hole, 0.260/0.268 in
SKU:TUR-3a0d95
Precision Diamond Negative Turning Blank for reliable machining results.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, 0.260/0.268 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, 0.260/0.268 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

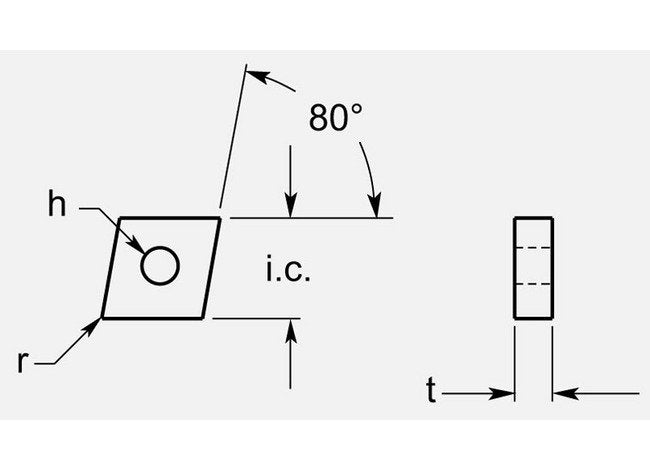

The Diamond Negative Turning Blank with Hole is a precision-engineered tool for turning applications, featuring a thickness range of 0.260 to 0.268 inches. With an inscribed circle diameter of 0.764 to 0.770 inches, an 80-degree angle, and a hole diameter of 0.309 to 0.315 inches, this blank offers superior performance and durability. Grade availability can be customized to meet specific project requirements, ensuring optimal results in machining processes.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.764/0.770 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Grade Availability Grade Availability
Available on Request
