Diamond Negative Turning Blank with Hole, 0.260-0.268 in
Diamond Negative Turning Blank with Hole, 0.260-0.268 in
SKU:TUR-283bb9
High-quality Diamond Negative Turning Blank with variable thickness and precise measurements for turning applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, 0.260-0.268 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, 0.260-0.268 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

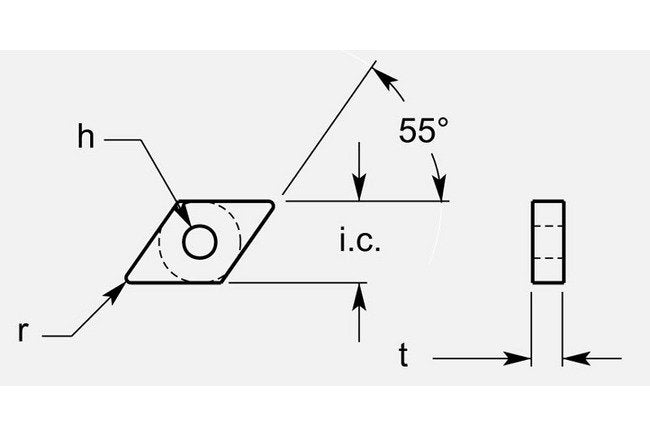

The Diamond Negative Turning Blank with Hole features a variable thickness of 0.260-0.268 inches, an Inscribed Circle of 0.497-0.503 inches, a Radius of 1/16 inch, and an Angle of 55 degrees. This versatile blank is grade available upon request, offering precision and quality for turning applications. It meets stringent government and institutional procurement standards for seamless integration into various projects.
Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Grade Availability Grade Availability
Available on Request
