Diamond Negative Turning Blank with Hole, r 1/16 in
Diamond Negative Turning Blank with Hole, r 1/16 in
SKU:TUR-79b043
Precision Diamond Negative Turning Blank with Hole, ideal for turning projects, customizable grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, r 1/16 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, r 1/16 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

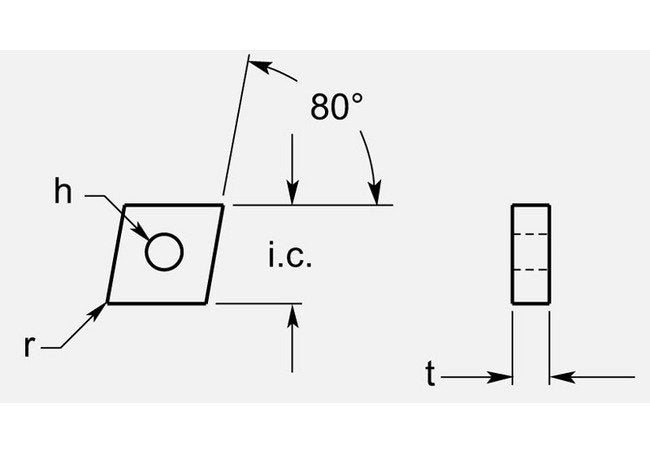

The Diamond Negative Turning Blank with Hole offers precision and durability for turning projects. With a Thickness of 0.260-0.268 in, an Inscribed Circle of 0.747-0.753 in, and an 80-degree Angle, this blank ensures accurate and consistent results. The included hole of 0.309-0.315 in adds versatility to your turning applications. Available in custom grades upon request.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Grade Availability Grade Availability
Available on Request
